Flashing Tapes

Adchem's NewFLASHTM and DrainFLASHTM are self-adhered, waterproof flashing products for flashing doors, windows and other openings of the building envelope designed and manufactured with new sealant compatible, clean, neat, materials offering new levels of protection from water, mold, mildew and rot.

Proven high performance pressure sensitive adhesive systems provide a broad range of performance, excellent sealant/adhesive compatibility and are easy to install in both cold installation temperatures to 20 oF and high temperatures where other products become difficult and messy. The adhesive is bonded to a conformable lightweight cross linked closed cell PE foam and will adhere well below 0 oF and at temperatures over 180 oF. The product weighs 60% of competitive butyl systems.

There are two different proprietary face sheets, one for NewFLASH , a 3 mil polyethylene face sheet co- extruded to the foam core for application in relatively dry areas. DrainFLASH uses the same foam and adhesive with an embossed non directional pattern on the surface of a 10 mil polyethylene film. Both products are tough, durable and provide leak protection resealing around nails and staples. Going beyond simple water barriers DrainFLASH provides a way to drain water and provide drying from behind trim and cladding. We provide construction site durable non-tear film release liners.


  • Drainage Plane Surface Technology
    • Non Directional Embossed Pattern allows Gallons per Hour Flow Rate
    • Allows Drying Action
    • Reduces Risk of Leaks, Mold Mildew and Rot
  • Durable Acrylic Adhesives
    • Improved Range of Performance
    • Improved Range of Installation
    • Greater Durability
  • Excellent Sealant Compatibility
    • Tested to Dozens of Sealants at Level 3 tested to 179° F
    • Greater Range of Choices
  • Clean and Easy to Use
    • Install at High and Low Temperatures
    • White face sheet has Low Reflectance Value
    • Removable Liner is Durable and Construction Site Friendly
  • Multiple Uses, Moisture Resistant
    • Window and Doors
    • Allows Drying Action
    • Deck Ledger Boards
    • Drip Caps
    • Sill Dam Drains
    • Ice Dams
    • Venting
    • All Breaks in Exterior Walls
  • Thoroughly Tested
    • Exceeds 711-07 Voluntary Specification for Self Adhered Flashing
    • Passes 713-08 Requirements for Sealant Compatibility Self Adhered Flashing
  • More Usable Sizes
    • Designed to match todays Trim Board widths
      • Available in 4", 5", 6", 7.5", 9", 10" and 12" wide
    • Available in large sheets
      • Easily Cut one or two piece round tops to 60 inch diameter
      • Cut to unique and difficult shapes such as ellipses, octagonals
  • Water Barrier Self Adhered Flashing with High Performance Materials
  • For drier locations
  • A classic barrier type SAF with the same benefits as DrainFLASH without the drainage plane surface
    • High Performance Acrylic Adhesive
    • Clean with Excellent Sealant Compatibility
    • Wide range of Installation Temperatures without the mess
  • Durable Acrylic Adhesives
    • Improved Range of Performance
    • Improved Range of Installation
    • Greater Durability
  • Excellent Sealant Compatibility
    • Tested to Dozens of Sealants at Level 3 tested to 179° F
    • Greater Range of Choices
  • Clean and Easy to Use
    • Install at High and Low Temperatures
    • White face sheet has Low Reflectance Value
    • Removable Liner is Durable and Construction Site Friendly
  • Multiple Uses, Moisture Resistant
    • Window and Doors
    • Allows Drying Action
    • Deck Ledger Boards
    • Drip Caps
    • Sill Dam Drains
    • Ice Dams
    • Venting
    • All Breaks in Exterior Walls
  • Thoroughly Tested
    • Exceeds 711-07 Voluntary Specification for Self Adhered Flashing
    • Passes 713-08 Requirements for Sealant Compatibility Self Adhered Flashing
  • More Usable Sizes
    • Designed to match todays Trim Board widths
      • Available in 4", 5", 6", 7.5", 9", 10" and 12" wide
    • Available in large sheets
      • Easily Cut one or two piece round tops to 60 inch diameter
      • Cut to unique and difficult shapes such as ellipses, octagonals

Product Construction

  • Release Liner
    • 5 mil High Density Polypropylene Blue
  • Standard Roll Length
    • 75 foot rolls available at 4", 6", 9 and 12 inch
    • New widths matching todays trim boards at 5", 7.5", 10" and
    • Sheets to 60 inch wide for round top windows
  • Adhesive
    • NewFLASH - 3 mils high performance acrylic adhesive system
    • DrainFLASH - 3 mils high performance acrylic adhesive system
  • Core
    • Cross Linked Closed Cell PE Foam
  • Face Sheet
    • NewFLASH - White Low Reflective Value Co extruded Polyethylene .003 thick
    • DrainFLASH - White Low Reflective Value Embossed Co extruded Polyethylene .010 thick

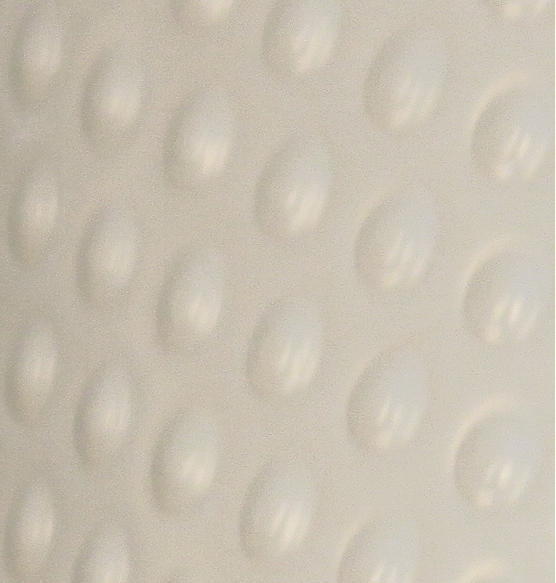

Embossing Pattern on the Face Sheet

Water drain in action

Product Features

  • DrainFLASH provides excellent water protection and a drainage plane to move water away from the openings in the exterior wall
  • DrainFLASH Dramatically reduces the risk of water intrusion and resulting mold, mildew and rot
  • Exceeds AAMA 711-07 Voluntary Specification for Self Adhered Flashing
  • Exceeds AAMA 713-08 requirements for sealant compatibility
  • Excellent range of sealant compatibility in AAMA 713-08 testing Thermal exposure Class 3 (176 oF 7 days)
  • Aggressive acrylic adhesive bonds to virtually all building surfaces, window materials, and housewraps in a broad range of temperatures
  • Clean Easy install without sticking to hands and tools down to 20 oF and up to 180 oF
  • Cross linked closed cell foam coextruded face sheet and acrylic adhesive provide three layers of sealing
  • Resists UV exposures for months
  • Non tear worksite durable moisture resistant LDPE liner

Sealants Tested

  • Nova Flex silicone (white)
  • Polyseamseal Paintable Acrylic with silicone (white)
  • DAP Side Winder (white)
  • Sashco Lexel super elastic sealant (white)
  • GE Window and Door silicone I (white)
  • Bond & Fill Flex silicone (white)
  • DAP silicone (tan)
  • Pro-Series OSI silicone (clear)
  • Tremco TremGlaze U1400 polyurethane sealant (white)
  • PL Polyurethane Premium Construction adhesive (beige)
  • GE Silicone II Window & Door with Boiseal (white)
  • Phenoseal Vinyl Adhesive Caulk (translucent)
  • DAP Butyl Flex rubber adhesive (white)
  • DAP Dynaflex 230 (white)
  • Tremco TremGlaze S500 Window & Door installation silicone
  • TremGlaze U1600 (UV Stable fast cure Polyurethane Sealant)
  • SoudaSeal 50LM (Low-Modulus +50%/-50% Sealant)
  • SoudaSeal AP All Purpose (Low VOC-Paintable-Solvent free-Odor free-Will not Shrink)
  • Soudal RTV50 (Neutral cure +50%/-50% Silicone)
  • Geocel 2300 (Construction Tripolymer Sealant)

Test Method:

AAMA 713-08 Voluntary Test Method to Determine Chemical Compatibility of Sealants and Self-Adhered Flexible Flashings

Requirements:

  • No observed liquefaction or visible degradation of self-adhered flashing or sealant.
  • No slump exceeding limits described in 9.2.b.
  • No extreme discoloration.

Results:

DrainFLASH and NewFLASH meet all requirements on all sealants tested to Level 3 aged at 176 oF. Some slump was noted on a few sealants but not more so than the control panel.


Sealant Compatibility Test Panels

DrainFLASH - Drain Plane Function Drain Rate Testing

Test Method:

This test method is a modification of ASTM 2273. The purpose is to establish the drain rate of water that is shed off building trim and cladding that comes into contact with the flashing system. The test measures the rate of flow from a given flashing system when installed over the nailing fin simulating, by use of a clear plexiglass sheet, and the installation of cladding and trim boards. The rate of drain is calculated by introduction of water into the horizontal chamber and timed and weighed. The measure is then calculated in gallons per hour of drain.

Results:

Drain Rate with both edges sealed

  • 4 Inch > 2 gallons per hour
  • 6 Inch > 3 gallons per hour
  • 9 Inch > 4.5 gallons per hour

Flashing Tape Products

Product Adhesive Type Tape Construction Liner Carrier Tape Family
DrainFLASH
Acrylic
One Side Coated PE Foam Tape
5 mil Blue High Density Polypropylene
Core: 0.050" Thick Cross Linked Closed Cell PE Foam

Face Sheet:White Low Reflective Value Embossed Co extruded Polyethylene .010" thick

Flashing Tape System
NewFLASH
Acrylic
One Side Coated PE Foam Tape
5 mil Blue High Density Polypropylene
Core: 0.050" Thick Cross Linked Closed Cell PE Foam

Face Sheet: White Low Reflective Value Co extruded Polyethylene .003" thick

Flashing Tape System
Disclaimer: The above information has been provided as a general guidance to assist in preliminary identification of potential products and adhesive systems. Data presented are typical properties taken from a limited number of laboratory tests and should not be used for specification purposes. All Adchem products are sold with the understanding that purchasers will be solely responsible for determining the suitability of the materials for any purpose. Adchem Corporation makes no warranties, either express or implied including any implied warranties of merchantability or fitness for use regarding the product information herein.

Adchem continues to seek ways to assist you in your adhesive selections for a wide variety of materials available on the market. If we can assist you with any further testing or screening to help you select the best Adchem adhesive system or Product for your application please do not hesitate to contact our Technical Service Department or your Adchem Sales Representative.
